Flight A6 Standard Package

Flight A6 Standard Package

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Sold out

OVERVIEW

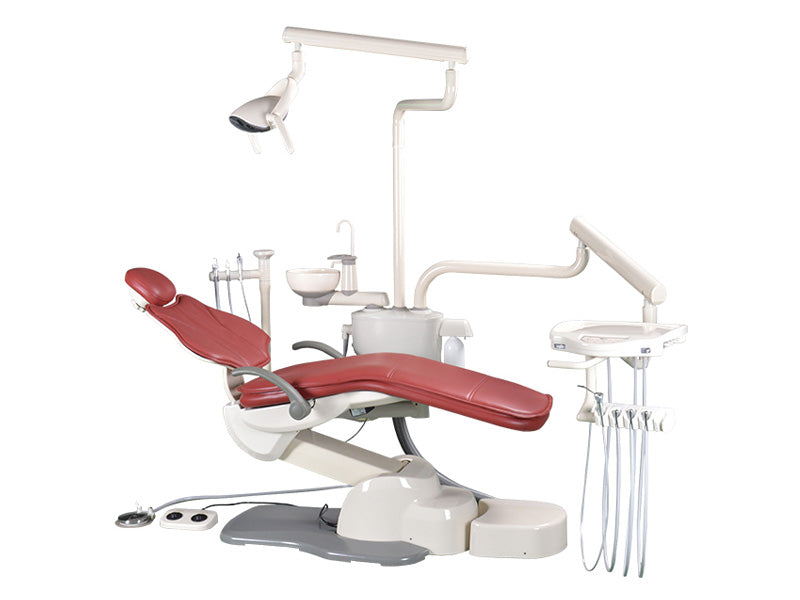

The A6 Operatory System is a compact, ergonomic and modern dental operatory system. It features a hybrid lift system that combines a strong hydraulic base and a quiet electromechanical back motor that allows a smooth synchronized movement of the chair to deliver faster patient positioning. In addition, the thin backrest and contoured base plate allows the user optimal maneuverability and access to the oral cavity.

It comes standard with a one piece rotating cuspidor, Torch LED Light, Chair Controls for doctor and Assistant Side and a clean water bottle system. The ergonomic design of the chair allows you to work efficiently at 9, 10, 11 or 12 o’clock positions without any obstructions. Available in both NA and Continental Style delivery systems.

Configurations:

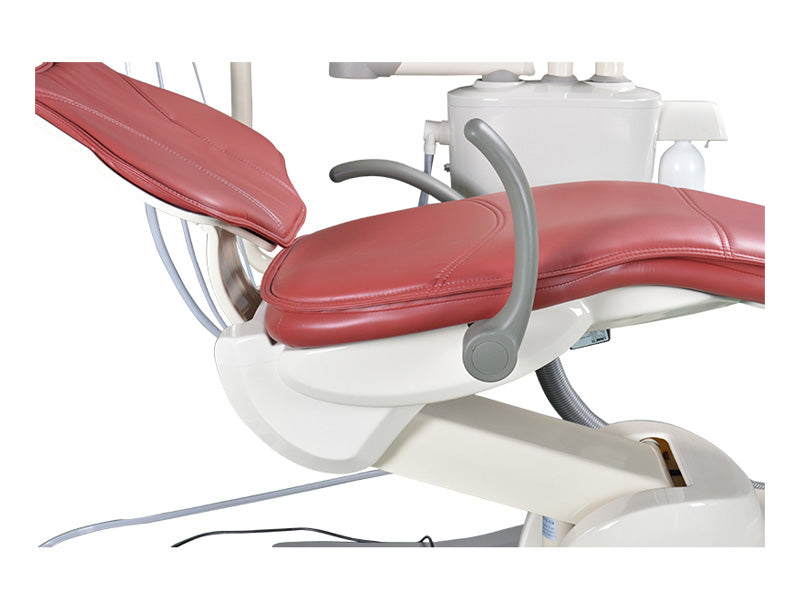

A6 Patient Chair (Standard Features)
  • Hydraulic Base and Electromechanical Back Rest
  • Seat Height 13.7” to 29.5” (350 to 750mm)

  • Backrest Reclining Angle -5° to 64°

  • Electronic Deluxe Foot Control: 2 Programmable positions, Auto-Return and Last Position

  • Safety Shut-Off Plate

  • Input Voltage (110v or 220v)

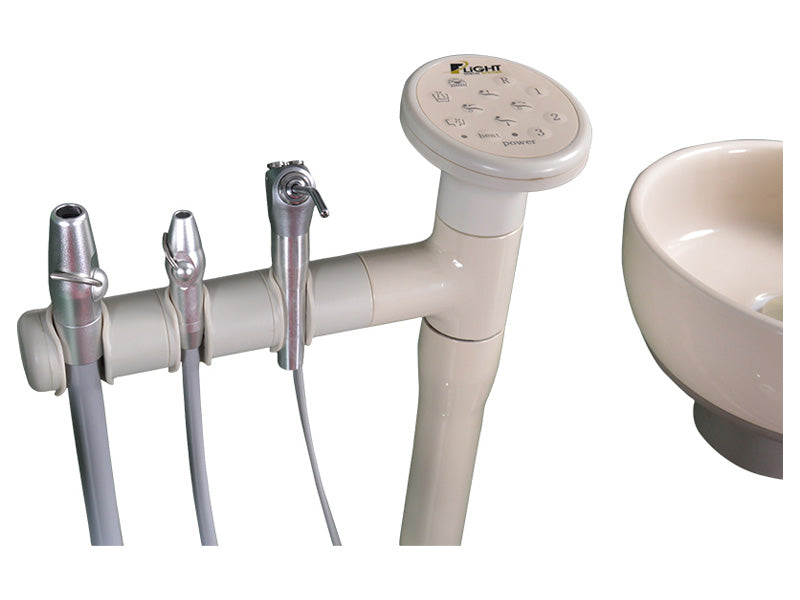

Delivery System
  • Straight Aseptic Tubing for Three Handpieces

  • Convenient Brake Release for Flex Arm

  • Master on-off Control

  • Individual Non-retracting Water Coolant Adjustment

  • Stainless Steel Tray

  • Purge System for Handpiece Tubing

  • Includes 3 in 1 Syringe

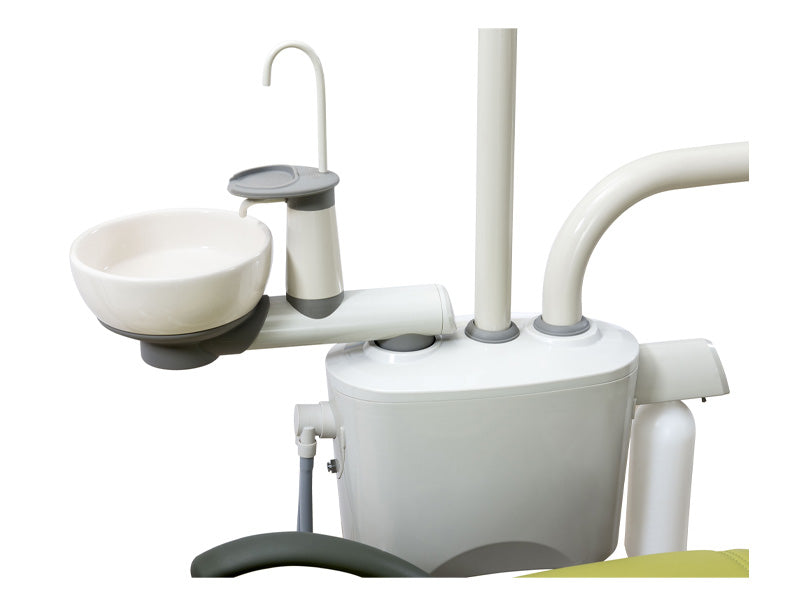

Post Mounted Utility Features

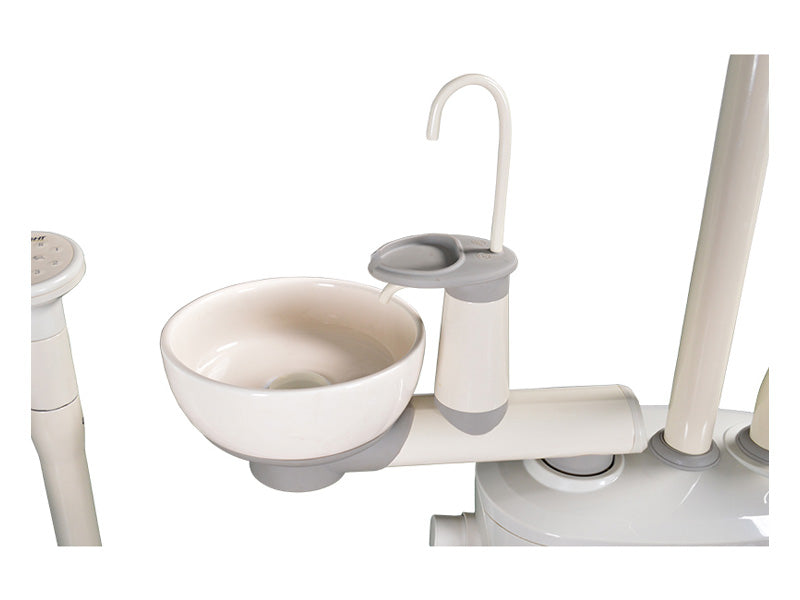

  • One-piece Cuspidor with Removable Ceramic Bowl

  • Automatic Bowl Rinse and Timed Cup Fill

  • Assistant’s Instrumentation (HVE, SE, 3in1 Syringe)

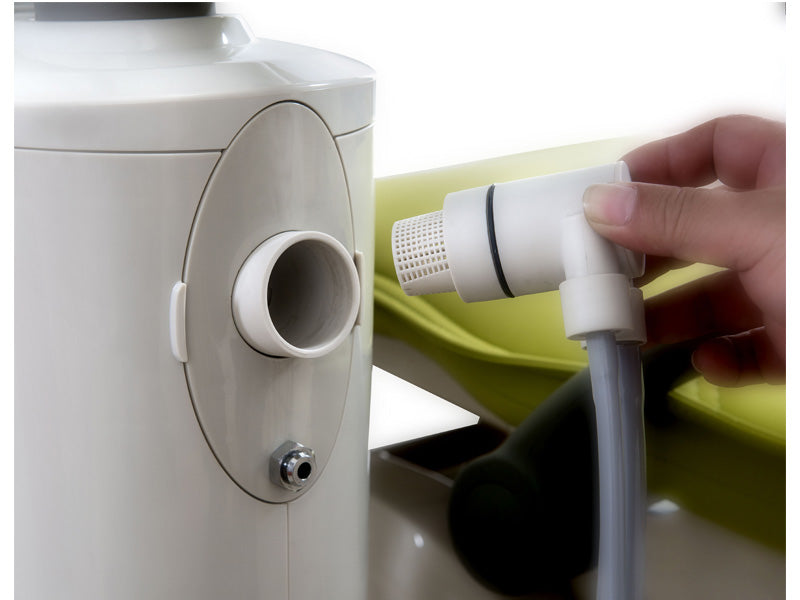

  • Vacuum canister with Solids Collector Screen

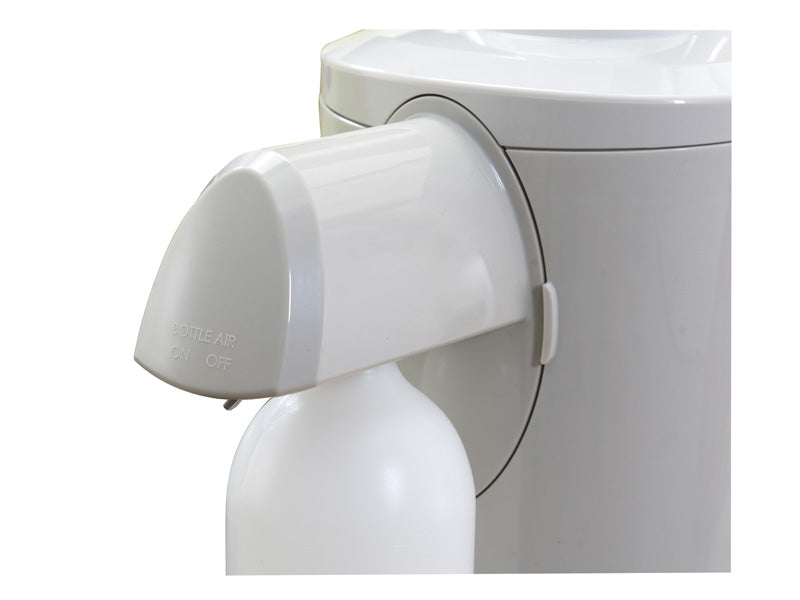

  • Self Contained water bottle system with City/Water Bottle Selector

  • Quick Disconnect water connection


Natural Working Condition:
  • Environment temperature: 5°C to 40°C

  • Related humidity: = 80%

  • Power supply : ~110-220V ± 10%; 50Hz ± 10%, total power of unit: 360VA

  • Air Pressure: 400-600kPa: 30-60psi

  • Water Pressure: 200-400kPa: 60-120 psi

  • Bearing capacity of the chair = 400lbs

Packing Dimensions

55.1” (1.4m) x 44.1” (1.12m) x 49” (1.25m)

Gross Weight

770lbs (350kg)

Net Weight

660lbs (300kg)
